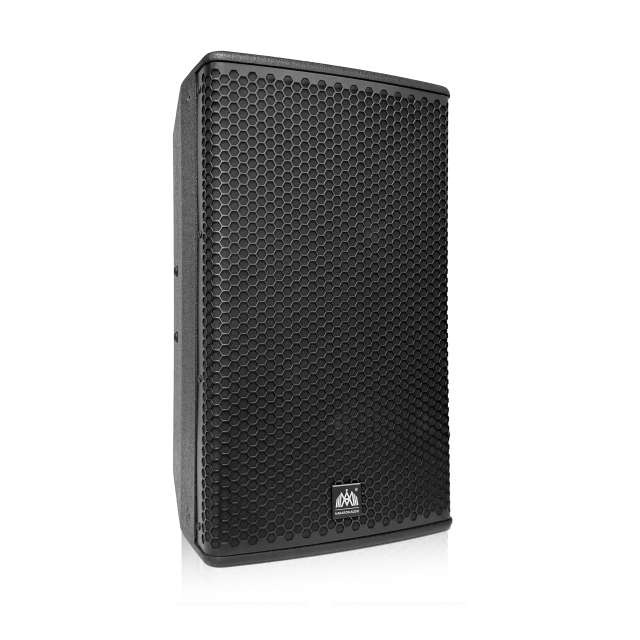

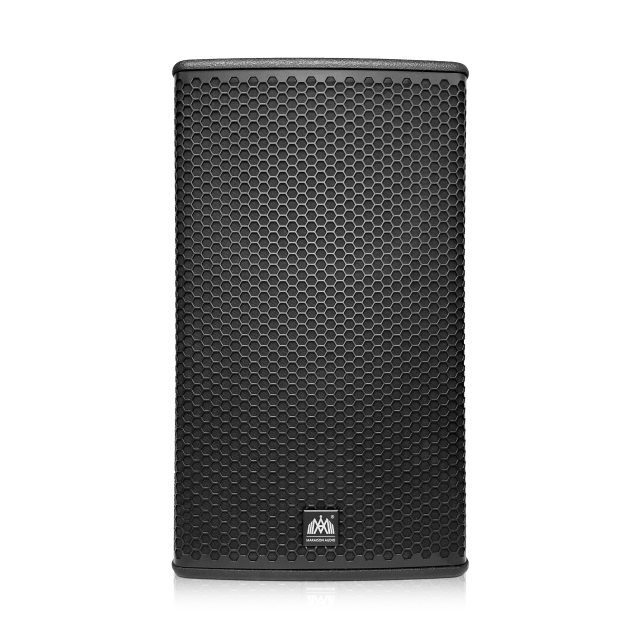

Stylish Appearance Design
Originating from European minimalist style, the honeycomb mesh is more durable and suitable for various occasions.
Over the years, Marleson has been committed to enhancing users' entertainment experience and continuously integrating British R&D technology, making every speaker deeply loved by users. We believe that the Marleson speaker you choose will live up to your expectations and allow you to enjoy every moment of wonderful music. When you consider purchasing audio equipment for home, KTV entertainment packages, bars and other venues, you will choose Marleson again.
As a speaker solution for karaoke entertainment systems, the PM series is made of high-end components and materials, and has also undergone strict testing by Marleson to ensure its reliability and stability during long-term operation. This speaker is designed with advanced British technology. Its excellent human voice and bass performance will allow you to clearly hear every note when singing your favorite songs, perfectly showcasing your singing voice. At the same time, it can highlight your distinctive sound characteristics, enabling even novice karaoke singers to sing beautiful and moving songs. Now, let's start a karaoke carnival that belongs to you immediately!

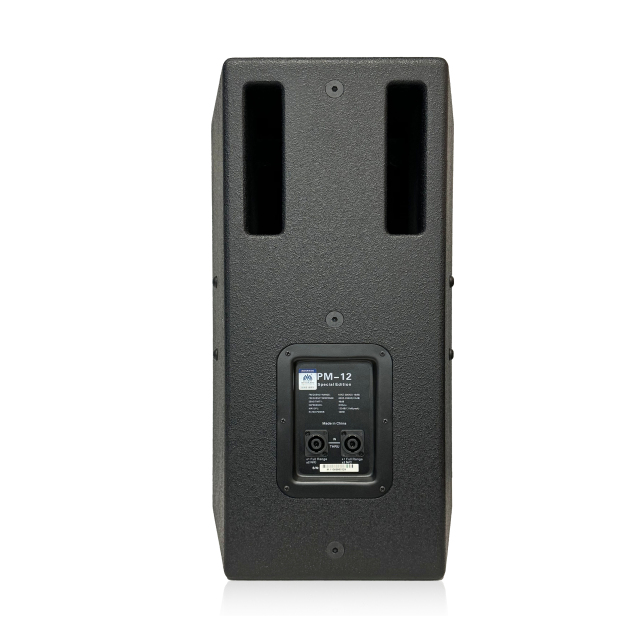

In any case, the primary requirement for placing speakers is safety. It is recommended to install the PM series on a solid ceiling or wall through a dedicated bracket hanger, or use a dedicated tripod or floor stand, and place it on the floor through the bracket mounting seat at the bottom of the speaker. It is recommended to leave a distance of 10-30cm from the wall at the installation position behind the speaker to achieve the best low-frequency reflection effect. The PM series adopts a standard Neutrik four-core interface. It is recommended to install the positive and negative poles of the speaker cable on the 1+ and 1- of the connector respectively to complete the connection.
| Specification |
PM-10 |
PM-12 |
| Model |
PM-10 |
PM-12 |
| System Type |
10-inch 2-way low-frequency reflection type |
12-inch 2-way low-frequency reflection type |
| Frequency Range (-10dB) |
55Hz-20kHz |
45Hz-20kHz |
| Frequency Response (±3dB) |
85Hz-20kHz |
80Hz-20kHz |
| Sensitivity (1W@1m) |
99dB |
101dB |
| Rated Impedance |
8 ohms |
8 ohms |
| Maximum Sound Pressure Level Output |
122dB (peak 128dB) |
125dB (peak 131dB) |
| Input Power (Continuous/Peak) |
400 W / 1600 W |
500 W / 2000 W |
| Coverage Angle |
70°×60° (H×V) |
70°×60° (H×V) |
| High-Frequency Unit |
1×1.35-inch compression driver |
1×1.35-inch compression driver |
| Low-Frequency Unit |
1×10-inch high-performance woofer |
1×12-inch high-performance woofer |
| Input Connector |
2×Neutrik Speakon NL4MP |
2×Neutrik Speakon NL4MP |
| Cabinet Structure |
Trapezoidal, 18mm, thick plywood |
Trapezoidal, 18mm, thick plywood |

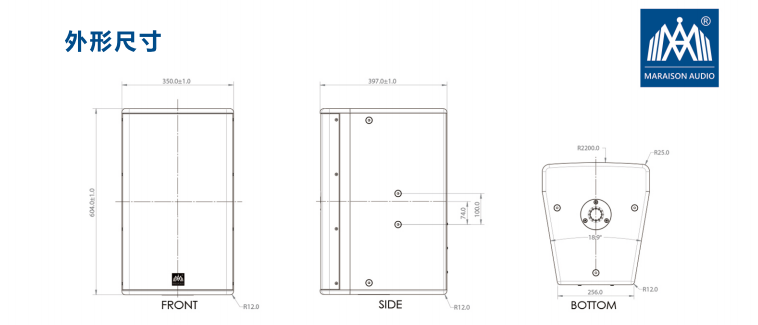

| External Dimensions (W×H×D) |
528mm×300mm×377mm |
604mm×350mm×397mm |
| Net Weight |
16.7KG |
22.3KG |
